Leaders in providing tools and services for design and virtual prototyping of optical systems.

Core Capability

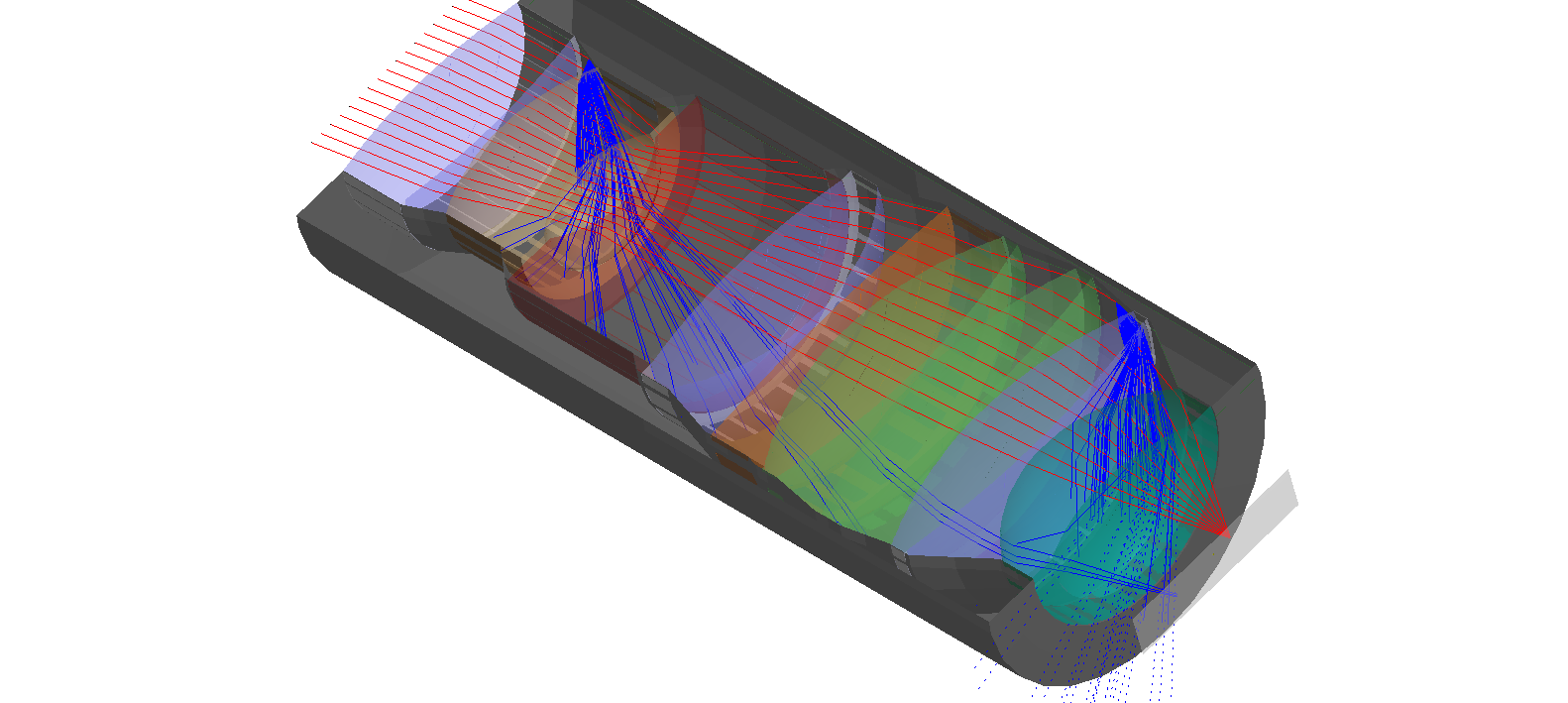

FRED Classic provides the core capability to propagate both coherent and incoherent light and assign realistic surface and material properties to every component of your system. FRED is a powerful software solution that can handle the most complex opto-mechanical projects.

Feature Highlights Include:

• Non-sequential and sequential raytracing

• Coherent beam propagation

• Multi-threading on up to 17 CPU threads

• 64-bit architecture

• 3D graphical interface for model construction and verification

• Lens import from ZEMAX®, CODE V®, and OLSO®

• CAD Import/Export (IGES, STEP, OBJ)

• Built-in scripting environment

Design with More Power

FRED Optimum includes all functionality of FRED, and provides engineers with more power by allowing the ray trace use up to 127 CPU cores, and across a distributed network of computers. Other essential tools include a multi-variable optimizer and sensitivity analysis.

Includes all features of FRED, plus:

• Multi-threading on up to 127 CPU threads

• Multi-variable optimization capability

• Parameter Sensitivity Analysis

• System Configurations Manager

• Parameter Pickups

• Distributed Computing

Save Time (…as in, lots of time)

FREDmpc is our most powerful edition of FRED and builds on the feature set of FRED Classic and FRED Optimum by offering the ability to accelerate your traces using NVidia GPU's which provides the ultimate speed boost to your calculations. Tracing faster means you save time and can perform more iterations on your system designs.

Our customers are currently using FREDmpc to:

• Perform straylight calculations in a few hours that used to take several days.

• Run Illumination simulations with many millions of rays in seconds.

• Accelerate coherent calculations in the recombination step.

Recently FREDmpc was used in what we believe was the first Trillion-ray trace! We’d like to give you more details on that but, well, we can’t - but it was super exciting!
